Dimension (W×D×H) 680×607×1900 mm Weight <510kg Cable Length 5~8m Interface 7″ LCD touch screen Connector Type CCS1 / CCS2 / GBT / CHAdeMO / NACS

SGIC series

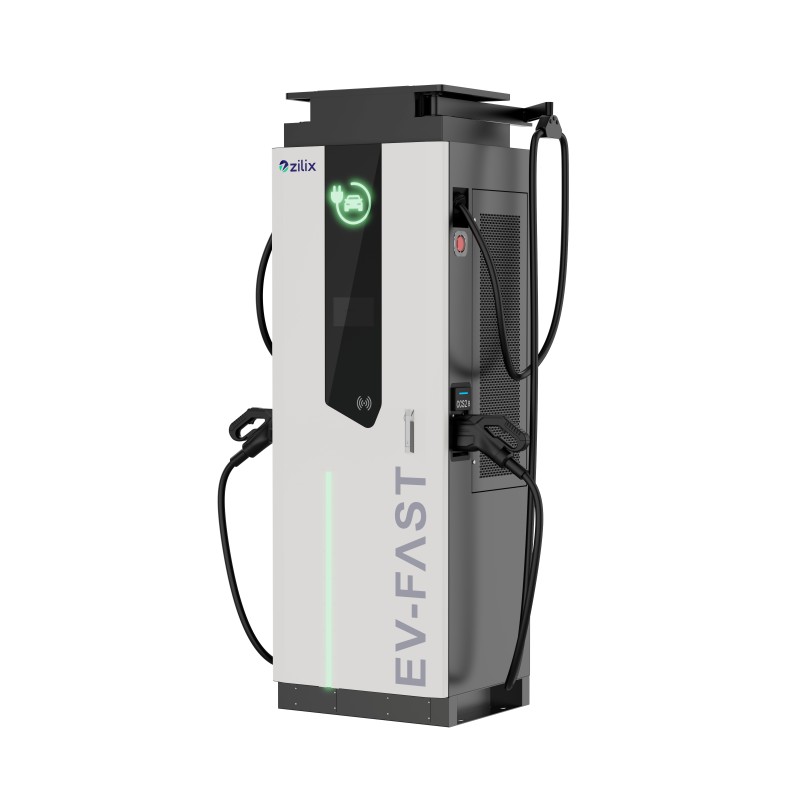

Zilix Pro DC EV Charger 80~320kW

Zilix Pro DC EV Charger delivers 80kW–320kW high-power DC charging with an articulated cable management system for convenient and reliable charging in public and commercial applications.

REQUEST

7-inch

Touchscreen Display

AC & DC

Charging

Retractable Cable

Management System

>95%

Charging Efficiency

24-Month

Warranty

High-Power Charging, Effortless Operation

Experience intelligent 80–320kW DC fast charging with Zilix Pro, featuring an articulated cable management system for convenient operation and reliable commercial EV charging.

Zilix Pro DC EV Charger 80~320kW

High-Power DC Charging with Articulated Cable Management: Zilix Pro DC EV Charger is a high-power integrated charging solution designed for public charging stations, highway service areas, fleet depots, and other commercial charging sites. Its articulated cable management system supports convenient cable handling, helping keep charging cables organized and reducing ground contact during daily operation. With flexible power distribution, multiple connector configurations, intelligent power management, and robust outdoor protection, Pro is well suited for high-utilization charging infrastructure where performance, reliability, and ease of use are essential.

Key Advantages

Intelligent Power Distribution

Dynamically allocate charging power to maximize charger utilization and improve charging efficiency across multiple outputs.

Scalable Power Configuration

Multiple power configurations from 80kW to 320kW allow operators to select the appropriate capacity for current charging demand while supporting future site expansion.

Smart Operation & Remote Management

Powered by Zilix’s in-house control technology, supporting OCPP 1.6J, remote diagnostics, OTA updates, and intelligent charger management.

Broad Vehicle Compatibility

Charging connectors can be configured with different standards, such as CCS2 + GB/T or CCS1 + CCS2, providing greater flexibility for mixed-vehicle charging environments and different markets.

Reliable Outdoor Performance

Built with IP55 protection, IK10 impact resistance, and C3 anti-corrosion coating, the charger delivers reliable performance in outdoor environments and demanding operating conditions.

Easy Maintenance & Serviceability

Front-access design and modular internal layout simplify routine inspection, servicing, and component replacement, reducing maintenance time and operating costs.

Applications

Designed for Versatile Charging Applications

Commercial Charging Stations

High-power DC charging for public charging networks, commercial parking facilities, and high-demand charging hubs.

Fleet Charging

Support efficient charging for logistics fleets, electric trucks, buses, taxis, and other high-utilization commercial vehicles.

Highway Service Areas

Provide fast and reliable charging for long-distance travel with continuous high-power operation.

Fuel & Energy Stations

Expand traditional fuel stations with integrated EV charging services to support the transition toward sustainable mobility.

Specification

Mechanical

Dimension (W×D×H)	680×607×1900 mm
Weight	<510kg
Cable Length	5~8m
Interface	7″ LCD touch screen
Connector Type	CCS1 / CCS2 / GBT / CHAdeMO / NACS

Electrical Parameters

Output Power	80kW / 120kW / 160kW / 180kW / 240kW / 320kW
Output Voltage	150~1000VDC
Output Current	0～250A
Power Supply	3P+N+PE
Input Voltage	AC380V±15%
Input Frequency	50±10%Hz
Power Factor	≥0.99
Efficiency	>95%

Environmental Parameters

Operating Temperature	-30°C ~ +65°C (derated above +55°C)
Storage Temperature	-40°C ~ +75°C
Operating Humidity	0% ~ 95%
Operating Altitude	<2000m (full load output)
Cooling method	Forced air cooling
Networking	4G / WiFi / Ethernet
Communication Protocol	OCPP1.6J
User Authentication	RFID / Mobile APP / POS

Build Your EV Charging Solution with ZILIX

Tell us your power, connector, installation, and project requirements. Our engineering team will recommend a suitable compact DC charger configuration and provide technical support, customization options, pricing, and delivery guidance.

Request a Quote

FAQ

The Zilix Pro features an articulated cable management system designed to simplify cable handling and improve the charging experience. The system helps keep charging cables organized and reduces contact with the ground during daily operation. Combined with intelligent power distribution and flexible 80–320kW configurations, it provides a practical charging solution for high-traffic public charging stations, commercial parking facilities, and fleet depots.
The Zilix Pro DC EV Charger is available in six power configurations: 80kW, 120kW, 160kW, 180kW, 240kW, and 320kW. With a DC output voltage range of 150–1000V and an output current of up to 250A, it supports a wide range of compatible electric vehicles. Charging operators can select the appropriate power configuration based on site capacity, vehicle charging requirements, and expected utilization. Actual charging performance depends on vehicle compatibility, battery specifications, and charging conditions.
The articulated cable management system helps users handle charging cables more conveniently while keeping them organized and elevated during charging operations. By reducing cable contact with the ground, the system helps minimize unnecessary dragging, supports a cleaner charging environment, and improves accessibility for drivers. This design is particularly useful for public charging stations, highway service areas, and fleet depots where charging connectors are handled frequently.
The Zilix Pro supports multiple DC charging connector standards, including CCS1, CCS2, GB/T, CHAdeMO, and NACS. Connector configurations can be customized according to regional charging standards and project requirements, making the charger suitable for passenger vehicles, electric taxis, logistics fleets, and compatible commercial electric vehicles. Its flexible configuration supports deployment across different markets and mixed-vehicle charging environments.
Yes. The Zilix Pro supports OCPP 1.6J and provides 4G, Wi-Fi, and Ethernet connectivity for integration with compatible charging management platforms. Operators can remotely monitor charging sessions, manage charger availability, access operational data, and perform remote diagnostics. The charger also supports RFID cards, mobile applications, and POS payment authentication, offering flexible access and payment options for commercial charging networks.
Yes. The Zilix Pro is designed for outdoor commercial charging applications, featuring IP55 protection, IK10 impact resistance, and C3 anti-corrosion coating. It operates in temperatures ranging from -30°C to +65°C, with power derating above +55°C. Its forced-air cooling system supports reliable operation in demanding environments. The front-access design and modular internal layout also simplify routine inspection, component replacement, and maintenance, making it suitable for public charging stations, highway service areas, and commercial fleet depots.
